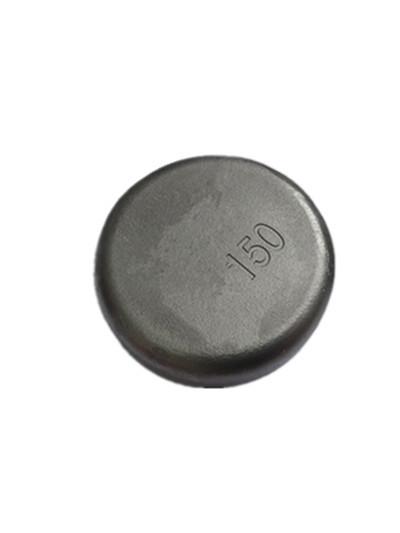

63HRC Chromium Diameter 150mm Flat Buttons Bucket Wear Parts
| Product Description |
Description
Very easy to use, no pre or post heating when welding. Available in diameters from 60mm up to 150mm. Develop your own layout and pattern to suit your particular wear protection solution.
Wear button blocks are extensively used on heavy earth moving equipment, particular on mining and construction buckets and shovels, heavy earth moving equipment etc. Ideal for smaller areas that require materials resistant to abrasion and impact.
Our wear buttons can also be used together with chocky blocks for better wearing protection.
Advantage:
1. Hardness: 63HRC/700BHN. According to the feedback from our end users, the usage life is at least 2 times higher compared with overlay/hardfacing wear plates, at least 7 times longer than A.R type steels 360/400BHN. The thicker ones such as 20mm or above wear plates, usage life is much more longer. The wear resistant performance is the same from plate surface to the brazing joint.
2. Wear plate surface is smooth and flat, media is not easy to stick on.
3. Shapes and sizes can be made on request; Bolts, Nuts, Washers, Holes, Threads are available on request.
4. Better cost-efficient.
5. Operating temperature: 550℃
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| WDB60 | Dome Buttons | φ60x27 | 60 | 27 | 17 | 10 | 0.7 | |
| WDB75 | Dome Buttons | φ75x27 | 75 | 27 | 17 | 10 | 0.9 | |
| WDB90 | Dome Buttons | φ90x27 | 90 | 27 | 17 | 10 | 1.2 | |
| WDB115 | Dome Buttons | φ115x32 | 115 | 32 | 20 | 12 | 2.6 | |
| WDB150 | Dome Buttons | φ150x41 | 150 | 41 | 25 | 16 | 5.7 | |
| WFB60 | Flat Buttons | φ60x27 | 60 | 17 | 10 | 27 | 0.7 | |
| WFB75 | Flat Buttons | φ75x27 | 75 | 17 | 10 | 27 | 0.9 | |
| WFB90 | Flat Buttons | φ90x27 | 90 | 17 | 10 | 27 | 1.2 | |
| WD75 | Donut | φ75x25 | 75 | 25 | 17 | 8 | 25 | 0.7 |
| WD100 | Donut | φ100x25 | 100 | 50 | 17 | 8 | 25 | 1 |
| WD101 | Donut | φ100x32 | 100 | 70 | 24 | 8 | 32 | 1 |
| WD130 | Donut | φ130x23 | 130 | 80 | 15 | 8 | 23 | 1.3 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
