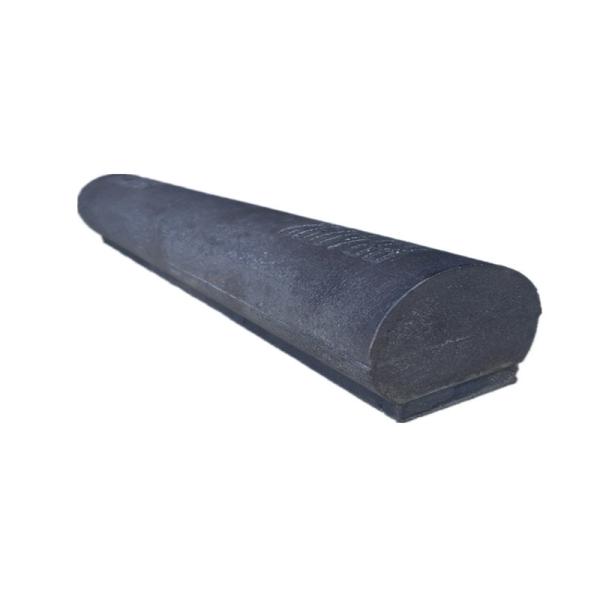

Abrasion Resistance 190x50x30mm Wear Blocks For Rock Box Protection
| Product Description |
Wear products Wear bars and blocks
Wear bars and blocks are available in thicknesses ranging from 25mm to 100mm, widths from 25mm to 300mm wide and in varying lengths.Popular for use in rock box protection, impact areas and transfer points, bars can be provided with Nelson studs with size and and location to suit.
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| VLB100 | STD | 200x25x25 | 200 | 25 | 15 | 10 | 25 | 1.0 |
| VLB150 | STD | 300x25x25 | 300 | 25 | 15 | 10 | 25 | 1.5 |
| VLB110 | STD | 195x25x30 | 195 | 25 | 20 | 10 | 30 | 1.1 |
| VLB420 | STD | 459x38x31 | 459 | 38 | 25 | 6 | 31 | 4.2 |
| VLB153 | STD | 153x38x33 | 153 | 38 | 25 | 8 | 33 | 1.5 |
| VLB300 | STD | 300x38x33 | 300 | 38 | 25 | 8 | 33 | 3.0 |
| VLB090 | STD | 102x33x33 | 102 | 33 | 25 | 8 | 33 | 0.9 |
| VLB220 | STD | 190x50x30 | 190 | 50 | 20 | 10 | 30 | 2.2 |
| VLB290 | STD | 150x50x50 | 150 | 50 | 40 | 10 | 50 | 2.9 |
| VLB410 | STD | 210x50x50 | 210 | 50 | 38 | 12 | 50 | 4.1 |
| VLB450 | STD | 230x50x50 | 230 | 50 | 38 | 12 | 50 | 4.5 |
| VLB500 | STD | 254x50x50 | 254 | 50 | 40 | 10 | 50 | 5.0 |
| VLB580 | STD | 294x50x50 | 294 | 50 | 40 | 10 | 50 | 5.7 |
| VLB850 | STD | 432x50x50 | 432 | 50 | 38 | 12 | 50 | 8.5 |
| VLB1180 | STD | 600x50x50 | 600 | 50 | 38 | 12 | 50 | 11.8 |
| VLB540 | STD | 230x50x60 | 230 | 50 | 40 | 20 | 60 | 5.4 |
| VLB160 | STD | 203x51x20 | 203 | 51 | 12 | 8 | 20 | 1.6 |
| VLB200 | STD | 254x51x20 | 254 | 51 | 12 | 8 | 20 | 2.0 |
| VLB244 | STD | 127x51x48 | 127 | 51 | 38 | 10 | 48 | 2.4 |
| VLB240 | STD | 250x60x20 | 250 | 60 | 12 | 8 | 20 | 2.4 |
| VLB340 | STD | 150x75x39 | 150 | 75 | 29 | 10 | 39 | 3.4 |
| VLB440 | STD | 150x75x50 | 150 | 75 | 40 | 10 | 50 | 4.4 |
| VLB530 | STD | 150x75x60 | 150 | 75 | 50 | 10 | 60 | 5.3 |
| VLB890 | STD | 200x75x75 | 200 | 75 | 63 | 12 | 75 | 8.8 |
| VLB610 | STD | 194x80x50 | 194 | 80 | 38 | 12 | 50 | 6.1 |
| VLB920 | STD | 294x80x50 | 294 | 80 | 38 | 12 | 50 | 9.2 |
| VLB1100 | STD | 241x100x58 | 241 | 100 | 38 | 20 | 58 | 11 |
| VLB2110 | STD | 300x150x60 | 300 | 150 | 48 | 12 | 60 | 21 |
Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION) |  |
 | |
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request. | |
