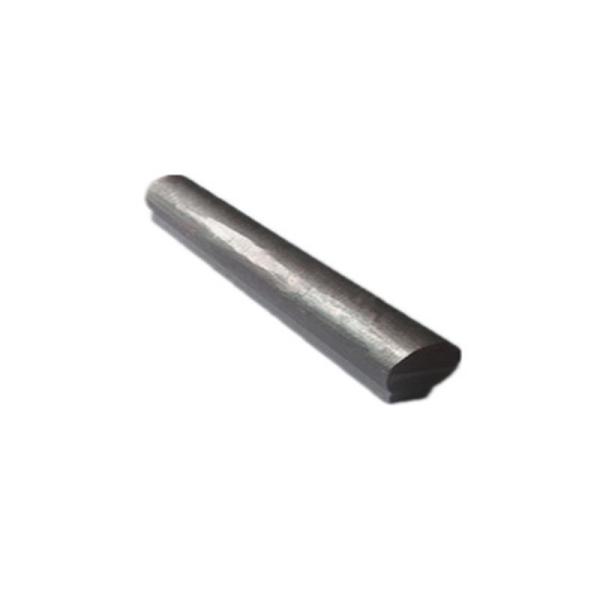

Impact Toughness 150J/Cm2 Chromium 127x51x48mm Excavator Wear Bars
| Product Description |
Wear products Wear bars and blocks
Can be formed and welded onto flat or curved surfaces. This allows them to be used on a range of fixed plant and mobile equipment such as buckets and chute liners. Available in 25mm and 100mm thicknesses.
We carry a wide range of cast white iron block and plate materials. The blocks and plates are popular in replacing hard faced and clad plate areas. They can be fitted by studding, bolting systems such as Fish tail bolts or by welding to the mild steel back. These blocks and plates can last up to 6 times the normal life of traditional wear plate systems.
Typical Applications Include:
Hardness: Typical 700 HB (63 Rc)
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) | ||||
| A | B | C | D | E | ||||
| VLB100 | STD | 200x25x25 | 200 | 25 | 15 | 10 | 25 | 1.0 |
| VLB150 | STD | 300x25x25 | 300 | 25 | 15 | 10 | 25 | 1.5 |
| VLB110 | STD | 195x25x30 | 195 | 25 | 20 | 10 | 30 | 1.1 |
| VLB420 | STD | 459x38x31 | 459 | 38 | 25 | 6 | 31 | 4.2 |
| VLB153 | STD | 153x38x33 | 153 | 38 | 25 | 8 | 33 | 1.5 |
| VLB300 | STD | 300x38x33 | 300 | 38 | 25 | 8 | 33 | 3.0 |
| VLB090 | STD | 102x33x33 | 102 | 33 | 25 | 8 | 33 | 0.9 |
| VLB220 | STD | 190x50x30 | 190 | 50 | 20 | 10 | 30 | 2.2 |
| VLB290 | STD | 150x50x50 | 150 | 50 | 40 | 10 | 50 | 2.9 |
| VLB410 | STD | 210x50x50 | 210 | 50 | 38 | 12 | 50 | 4.1 |
| VLB450 | STD | 230x50x50 | 230 | 50 | 38 | 12 | 50 | 4.5 |
| VLB500 | STD | 254x50x50 | 254 | 50 | 40 | 10 | 50 | 5.0 |
| VLB580 | STD | 294x50x50 | 294 | 50 | 40 | 10 | 50 | 5.7 |
| VLB850 | STD | 432x50x50 | 432 | 50 | 38 | 12 | 50 | 8.5 |
| VLB1180 | STD | 600x50x50 | 600 | 50 | 38 | 12 | 50 | 11.8 |
| VLB540 | STD | 230x50x60 | 230 | 50 | 40 | 20 | 60 | 5.4 |
| VLB160 | STD | 203x51x20 | 203 | 51 | 12 | 8 | 20 | 1.6 |
| VLB200 | STD | 254x51x20 | 254 | 51 | 12 | 8 | 20 | 2.0 |
| VLB244 | STD | 127x51x48 | 127 | 51 | 38 | 10 | 48 | 2.4 |
| VLB240 | STD | 250x60x20 | 250 | 60 | 12 | 8 | 20 | 2.4 |
| VLB340 | STD | 150x75x39 | 150 | 75 | 29 | 10 | 39 | 3.4 |
| VLB440 | STD | 150x75x50 | 150 | 75 | 40 | 10 | 50 | 4.4 |
| VLB530 | STD | 150x75x60 | 150 | 75 | 50 | 10 | 60 | 5.3 |
| VLB890 | STD | 200x75x75 | 200 | 75 | 63 | 12 | 75 | 8.8 |
| VLB610 | STD | 194x80x50 | 194 | 80 | 38 | 12 | 50 | 6.1 |
| VLB920 | STD | 294x80x50 | 294 | 80 | 38 | 12 | 50 | 9.2 |
| VLB1100 | STD | 241x100x58 | 241 | 100 | 38 | 20 | 58 | 11 |
| VLB2110 | STD | 300x150x60 | 300 | 150 | 48 | 12 | 60 | 21 |

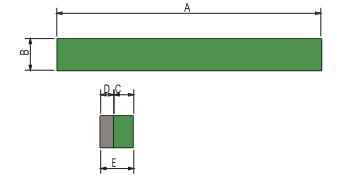

Product Drawing
| Product Categories |
| 1. Chocky Bars and Blocks | 2. Wear Bars and Blocks | 3. Shaped Wear Bars |
| 4. Wear Buttons & Donuts | 4. Knife Edges | 6. Shredder Hammer Tips |
| 7. Skid Bars | 8. Wear Plates | 9. Grizzly Bars |
| 10. Chocky Rockbox Liners | 11. Dozer Blade | To View More |
| Company Profile |
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
| Team & Exhibition |
| Product Application |
| Quality Control |
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
| Payment & Shipping |
PAYMENT Standard payment terms: 30% T/T deposit,balance against the copy of B/L More payment terms could be provided (LC/DA/DP PAYPAL WESTERN UNION) |  |
 | |
SHIPPING Delivery time: 15 days after deposit payment received(based on order quantity) Packing: Plywood box or customized packing as your request. | |
